CellProcessor Class Reference

#include <CellProcessor.h>

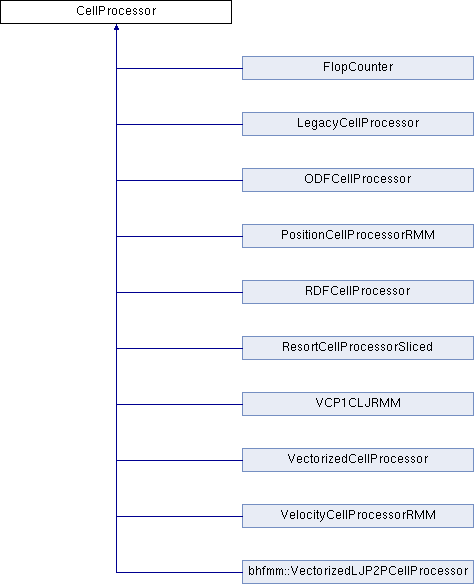

Inheritance diagram for CellProcessor:

Public Member Functions
	CellProcessor (const double cutoffRadius, const double LJCutoffRadius)
virtual	~CellProcessor ()
double	getCutoffRadius () const
double	getLJCutoffRadius () const
void	setCutoffRadius (const double c)
void	setLJCutoffRadius (const double ljc)
double	getCutoffRadiusSquare () const
double	getLJCutoffRadiusSquare () const
void	setCutoffRadiusSquare (const double c)
void	setLJCutoffRadiusSquare (const double ljc)
virtual void	initTraversal ()=0
virtual void	preprocessCell (ParticleCell &cell)=0
virtual void	processCellPair (ParticleCell &cell1, ParticleCell &cell2, bool sumAll=false)=0
virtual void	processCell (ParticleCell &cell)=0
virtual double	processSingleMolecule (Molecule *m1, ParticleCell &cell2)=0
virtual void	postprocessCell (ParticleCell &cell)=0
virtual void	endTraversal ()=0

Protected Attributes
double	_cutoffRadiusSquare
double	_LJCutoffRadiusSquare

Detailed Description

Interface for traversal of cells to allow a cell-wise treatment of molecules.

As depicted in the picture, cells are traversed in a first-in-first-out (FIFO) order, e.g. cell 26 is searched for interacting particles before cell 27 is ever considered, and similarily cell no. 26 will become the "current" cell before cell no. 27.

The grey cells are the ones which may e.g. be searched for interacting particles, so they are called active cells. Before a cell will be handed to the method processCell() or processCellPair() for the first time during an iteration, preprocessCell will be called to allow preparatory stuff. PostprocessCell is called analogously after a cell has been considered for the last time. In between, processCell and processCellPair are called.

Author

eckhardw

Constructor & Destructor Documentation

~CellProcessor()

virtual CellProcessor::~CellProcessor ( )

inlinevirtual

virtual destructor

Member Function Documentation

endTraversal()

virtual void CellProcessor::endTraversal ( )

pure virtual

Called after the traversal finished.

Implemented in bhfmm::VectorizedLJP2PCellProcessor, PositionCellProcessorRMM, VelocityCellProcessorRMM, FlopCounter, LegacyCellProcessor, RDFCellProcessor, VCP1CLJRMM, VectorizedCellProcessor, ResortCellProcessorSliced, and ODFCellProcessor.

initTraversal()

virtual void CellProcessor::initTraversal ( )

pure virtual

called before the traversal starts.

Parameters

numCells

number of cells in window

Implemented in bhfmm::VectorizedLJP2PCellProcessor, PositionCellProcessorRMM, VelocityCellProcessorRMM, FlopCounter, LegacyCellProcessor, RDFCellProcessor, VCP1CLJRMM, VectorizedCellProcessor, ResortCellProcessorSliced, and ODFCellProcessor.

postprocessCell()

virtual void CellProcessor::postprocessCell ( ParticleCell &  cell )

pure virtual

Called after the cell has been considered for the last time during the traversal.

Implemented in bhfmm::VectorizedLJP2PCellProcessor, LegacyCellProcessor, RDFCellProcessor, VCP1CLJRMM, VectorizedCellProcessor, ResortCellProcessorSliced, PositionCellProcessorRMM, VelocityCellProcessorRMM, FlopCounter, and ODFCellProcessor.

preprocessCell()

virtual void CellProcessor::preprocessCell ( ParticleCell &  cell )

pure virtual

Called before a cell is touched for the first time during an interation.

Implemented in bhfmm::VectorizedLJP2PCellProcessor, LegacyCellProcessor, RDFCellProcessor, VCP1CLJRMM, VectorizedCellProcessor, ResortCellProcessorSliced, PositionCellProcessorRMM, VelocityCellProcessorRMM, FlopCounter, and ODFCellProcessor.

processCell()

virtual void CellProcessor::processCell ( ParticleCell &  cell )

pure virtual

Called when this cell is the current cell.

Note

will not be called for empty cells.

Implemented in bhfmm::VectorizedLJP2PCellProcessor, PositionCellProcessorRMM, VelocityCellProcessorRMM, FlopCounter, LegacyCellProcessor, RDFCellProcessor, VCP1CLJRMM, VectorizedCellProcessor, ResortCellProcessorSliced, and ODFCellProcessor.

processCellPair()

virtual void CellProcessor::processCellPair ( ParticleCell &  cell1, ParticleCell &  cell2, bool  sumAll = false  )

pure virtual

Called for each cell pair within the cutoff radius. Called exactly once per pair (i.e. pairs are not ordered).

Note

will not be called for empty cells. Sum up all macroscopic values (e.g. for hs) or only half of them (e.g. for fs)

Implemented in ResortCellProcessorSliced, bhfmm::VectorizedLJP2PCellProcessor, FlopCounter, ODFCellProcessor, PositionCellProcessorRMM, VelocityCellProcessorRMM, LegacyCellProcessor, RDFCellProcessor, VCP1CLJRMM, and VectorizedCellProcessor.

---

The documentation for this class was generated from the following file:

• src/particleContainer/adapter/CellProcessor.h
