DataArrayList_t Class Reference

List class corresponding to the DataArrayList_t schema type. More...

#include <vtk-unstructured.h>

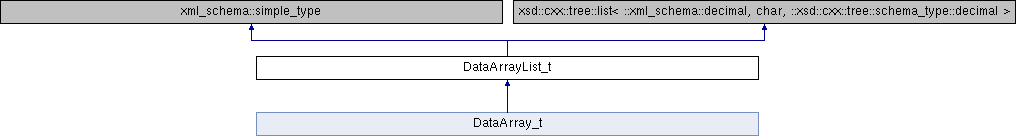

Inheritance diagram for DataArrayList_t:

Public Member Functions
	DataArrayList_t ()
	Default constructor. More...
	DataArrayList_t (size_type n, const ::xml_schema::decimal &x)
	Create a list with copies of the specified element. More...
template<typename I >
	DataArrayList_t (const I &begin, const I &end)
	Create a list from an iterator range. More...
	DataArrayList_t (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...
	DataArrayList_t (const ::xercesc::DOMAttr &a, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM attribute. More...
	DataArrayList_t (const ::std::string &s, const ::xercesc::DOMElement *e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a string fragment. More...
	DataArrayList_t (const DataArrayList_t &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...
virtual DataArrayList_t *	_clone (::xml_schema::flags f=0, ::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...
virtual	~DataArrayList_t ()
	Destructor.

Detailed Description

List class corresponding to the DataArrayList_t schema type.

This class has an interface of a standard C++ sequence (e.g., std::vector).

Constructor & Destructor Documentation

DataArrayList_t() [1/7]

DataArrayList_t::DataArrayList_t

(

)

Default constructor.

Creates an empty list.

DataArrayList_t() [2/7]

DataArrayList_t::DataArrayList_t	(	size_type	n,
		const ::xml_schema::decimal &	x
	)

Create a list with copies of the specified element.

Parameters

n	A number of elements to copy.
x	An element to copy.

This constructor creates a list with n copies of x.

DataArrayList_t() [3/7]

template<typename I >

DataArrayList_t::DataArrayList_t ( const I &  begin, const I &  end  )

inline

Create a list from an iterator range.

Parameters

begin	An iterator pointing to the first element.
end	An iterator pointing to the one past the last element.

This constructor creates a list consisting of copies of the elements in the range [begin,end).

DataArrayList_t() [4/7]

DataArrayList_t::DataArrayList_t	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

DataArrayList_t() [5/7]

DataArrayList_t::DataArrayList_t	(	const ::xercesc::DOMAttr &	a,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Create an instance from a DOM attribute.

Parameters

a	A DOM attribute to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

DataArrayList_t() [6/7]

DataArrayList_t::DataArrayList_t	(	const ::std::string &	s,
		const ::xercesc::DOMElement *	e,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Create an instance from a string fragment.

Parameters

s	A string fragment to extract the data from.
e	A pointer to DOM element containing the string fragment.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

DataArrayList_t() [7/7]

DataArrayList_t::DataArrayList_t	(	const DataArrayList_t &	x,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

Member Function Documentation

_clone()

DataArrayList_t * DataArrayList_t::_clone ( ::xml_schema::flags  f = 0, ::xml_schema::container *  c = 0  ) const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns

A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented in DataArray_t.

---

The documentation for this class was generated from the following files:

• src/io/vtk/vtk-unstructured.h
• src/io/vtk/vtk-unstructured.cpp
