DomainDecompBase Class Reference

handle boundary region and multiple processes More...

#include <DomainDecompBase.h>

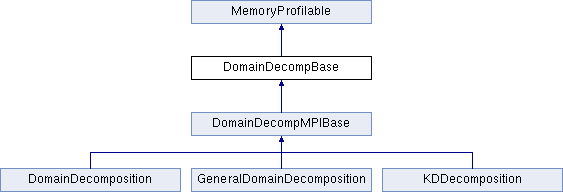

Inheritance diagram for DomainDecompBase:

Public Member Functions
	DomainDecompBase ()
	The Constructor determines the own rank and the number of the neighbours *‍/.
	~DomainDecompBase () override
	The Destructor finalizes MPI.
virtual void	readXML (XMLfileUnits &xmlconfig)
void	exchangeMolecules (ParticleContainer *moleculeContainer, Domain *domain)
	exchange molecules between processes More...
virtual void	exchangeForces (ParticleContainer *moleculeContainer, Domain *domain)
	Exchanges forces at the domain boundaries if it's required by the cell container. More...
virtual int	getNonBlockingStageCount ()
virtual bool	queryBalanceAndExchangeNonBlocking (bool forceRebalancing, ParticleContainer *moleculeContainer, Domain *domain, double etime)
	Checks whether the balance and exchange step can be performed non-blocking. More...
virtual void	balanceAndExchange (double lastTraversalTime, bool forceRebalancing, ParticleContainer *moleculeContainer, Domain *domain)
	balance the load (and optimize communication) and exchange boundary particles More...
virtual bool	procOwnsPos (double x, double y, double z, Domain *domain) final
	find out whether the given position belongs to the domain of this process More...
void	getBoundingBoxMinMax (Domain *domain, double *min, double *max)
	get the minimum and maximum coordinate of the bounding box of this process' domain More...
virtual double	getBoundingBoxMin (int dimension, Domain *domain)
	get the minimum of the bounding box of this process' domain in the given dimension (0,1,2) More...
virtual double	getBoundingBoxMax (int dimension, Domain *domain)
	get the maximum of the bounding box of this process' domain in the given dimension (0,1,2) More...
virtual void	printDecomp (const std::string &filename, Domain *domain, ParticleContainer *particleContainer)
	writes information about the current decomposition into the given file More...
virtual int	getRank () const
	returns the own rank More...
virtual int	getNumProcs () const
	returns the number of processes More...
virtual void	barrier () const
	synchronizes all processes More...
virtual double	getTime () const
	returns the time in seconds since some time in the past
virtual unsigned	Ndistribution (unsigned localN, float *minrnd, float *maxrnd)
	returns total number of molecules More...
virtual void	assertIntIdentity (int IX)
	checks identity of random number generators More...
virtual void	assertDisjunctivity (ParticleContainer *moleculeContainer) const
double	getIOCutoffRadius (int dim, Domain *domain, ParticleContainer *moleculeContainer)
	returns an cutoff radius for a dimension for a global linked cells datastructure More...
void	writeMoleculesToMPIFileBinary (const std::string &filename, ParticleContainer *moleculeContainer) const
	appends molecule data to the file. The format is the same as that of the input file This version uses, MPI IO. More...
void	writeMoleculesToFile (const std::string &filename, ParticleContainer *moleculeContainer, bool binary=false) const
	appends molecule data to the file. The format is the same as that of the input file If MPI is enabled and binary files are supposed to be written this function will call writeMoleculesToMPIFileBinary(). Otherwise, to ensure that not more than one process writes to the file at any time, there is a loop over all processes with a barrier in between. More...
void	updateSendLeavingWithCopies (bool sendTogether)
bool	sendLeavingWithCopies () const
virtual void	collCommInit (int numValues, int key=0)
	has to call init method of a CollComm class More...
virtual void	collCommFinalize ()
	has to call finalize method of a CollComm class More...
virtual void	collCommAppendInt (int intValue)
	has to call appendInt method of a CollComm class More...
virtual void	collCommAppendUnsLong (unsigned long unsLongValue)
	has to call appendUnsLong method of a CollComm class More...
virtual void	collCommAppendFloat (float floatValue)
	has to call appendFloat method of a CollComm class More...
virtual void	collCommAppendDouble (double doubleValue)
	has to call appendDouble method of a CollComm class More...
virtual void	collCommAppendLongDouble (long double longDoubleValue)
	has to call appendLongDouble method of a CollComm class More...
virtual int	collCommGetInt ()
	has to call getInt method of a CollComm class More...
virtual unsigned long	collCommGetUnsLong ()
	has to call getUnsLong method of a CollComm class More...
virtual float	collCommGetFloat ()
	has to call getFloat method of a CollComm class More...
virtual double	collCommGetDouble ()
	has to call getDouble method of a CollComm class More...
virtual long double	collCommGetLongDouble ()
	has to call getLongDouble method of a CollComm class More...
virtual void	collCommAllreduceSum ()
	has to call allreduceSum method of a CollComm class (none in sequential version) More...
virtual void	collCommAllreduceSumAllowPrevious ()
	has to call allreduceSum method of a CollComm class (none in sequential version), allows for values of previous iteration. More...
virtual void	collCommAllreduceCustom (ReduceType type)
	has to call allreduceCustom method of a CollComm class (none in sequential version) More...
virtual void	collCommScanSum ()
	has to call scanSum method of a CollComm class (none in sequential version) More...
virtual void	collCommBroadcast (int root=0)
	has to call broadcast method of a CollComm class (none in sequential version) More...
virtual std::vector< int >	getNeighbourRanks ()
virtual std::vector< int >	getNeighbourRanksFullShell ()
virtual std::vector< std::vector< std::vector< int > > >	getAllRanks ()
virtual MPI_Comm	getCommunicator ()
virtual size_t	getTotalSize () override
virtual void	printSubInfo (int offset) override
virtual std::string	getName () override
virtual void	printCommunicationPartners (std::string filename) const

Protected Member Functions
void	addLeavingMolecules (std::vector< Molecule > &&invalidMolecules, ParticleContainer *moleculeContainer)
void	handleDomainLeavingParticles (unsigned dim, ParticleContainer *moleculeContainer) const
void	handleDomainLeavingParticlesDirect (const HaloRegion &haloRegion, ParticleContainer *moleculeContainer, std::vector< Molecule > &invalidParticles) const
void	handleForceExchange (unsigned dim, ParticleContainer *moleculeContainer) const
	Does the force exchange for each dimension. Will be called for dim=0, 1 and 2. More...
virtual void	handleForceExchangeDirect (const HaloRegion &haloRegion, ParticleContainer *moleculeContainer) const
void	populateHaloLayerWithCopies (unsigned dim, ParticleContainer *moleculeContainer) const
void	populateHaloLayerWithCopiesDirect (const HaloRegion &haloRegion, ParticleContainer *moleculeContainer, bool positionCheck=true) const

Protected Attributes
int	_rank
	the id of the current process
int	_numProcs
	total number of processes in the simulation

Friends
class	NeighbourCommunicationScheme
class	IndirectNeighbourCommunicationScheme
class	DirectNeighbourCommunicationScheme

Detailed Description

handle boundary region and multiple processes

Author

Martin Buchholz, Nikola Tchipev

This program is designed to run on a HPC (High Performance Computer). But sometimes one might want to execute it on a single processor, possibly even without having MPI installed on that machine. One way to allow this would be to have two different versions of the program, one sequential version and one parallel version. But that isn't feasible, as it is hardly possible to keep them both up to date without investing a lot of additional time. Before describing how this problem is solved, you'll have to know a little bit about how the parallel version works.

At the moment, domain decomposition is used. The basic idea is, that the region which is simulated (usually a cube) is divided into several smaller regions. Each process works on one of those regions. But as the molecules move between regions, the processes have to communicate to exchange molecules. Also for the calculation of some values (e.g. macroscopic values), communication is necessary. Each time processes need to communicate, a method of this interface (that means a method of a class implementing this interface) is called, which then somehow does the communication.

Assume you have an class which implements this interface and which is capable of doing all the necessary stuff for the parallelization. Further assume that you have a second class which also implements this interface which is only capable of handling one process but doesn't need any MPI (with only one process, there is no need for message passing between processes). So the main program (or in this case the class Simulation) can decide which implementation to use. When MPI is available, the parallel version is used, otherwise the sequential version

Member Function Documentation

assertDisjunctivity()

void DomainDecompBase::assertDisjunctivity ( ParticleContainer *  moleculeContainer ) const

virtual

Reimplemented in DomainDecompMPIBase.

assertIntIdentity()

void DomainDecompBase::assertIntIdentity ( int  IX )

virtual

checks identity of random number generators

Reimplemented in DomainDecompMPIBase.

balanceAndExchange()

void DomainDecompBase::balanceAndExchange ( double  lastTraversalTime, bool  forceRebalancing, ParticleContainer *  moleculeContainer, Domain *  domain  )

virtual

balance the load (and optimize communication) and exchange boundary particles

This method is used to perform a new decomposition of the global domain with the goal of getting the equal load (and possibly additional goals) on each process. This method is then also responsible for redistributing all particles, so after the method was called, each process has a domain with all particles belonging to this domain (as if exchangeParticles was called after the new decomposition).

Parameters

balance	if true, a rebalancing is forced; otherwise automatic balancing of Decomposition is applied
moleculeContainer	needed for calculating load and to get the particles
domain	is e.g. needed to get the size of the local domain

Reimplemented in DomainDecomposition, GeneralDomainDecomposition, and KDDecomposition.

barrier()

void DomainDecompBase::barrier ( ) const

virtual

synchronizes all processes

Reimplemented in DomainDecompMPIBase.

collCommAllreduceCustom()

void DomainDecompBase::collCommAllreduceCustom ( ReduceType  type )

virtual

has to call allreduceCustom method of a CollComm class (none in sequential version)

Reimplemented in DomainDecompMPIBase.

collCommAllreduceSum()

void DomainDecompBase::collCommAllreduceSum ( )

virtual

has to call allreduceSum method of a CollComm class (none in sequential version)

Reimplemented in DomainDecompMPIBase.

collCommAllreduceSumAllowPrevious()

void DomainDecompBase::collCommAllreduceSumAllowPrevious ( )

virtual

has to call allreduceSum method of a CollComm class (none in sequential version), allows for values of previous iteration.

Reimplemented in DomainDecompMPIBase.

collCommAppendDouble()

void DomainDecompBase::collCommAppendDouble ( double  doubleValue )

virtual

has to call appendDouble method of a CollComm class

Reimplemented in DomainDecompMPIBase.

collCommAppendFloat()

void DomainDecompBase::collCommAppendFloat ( float  floatValue )

virtual

has to call appendFloat method of a CollComm class

Reimplemented in DomainDecompMPIBase.

collCommAppendInt()

void DomainDecompBase::collCommAppendInt ( int  intValue )

virtual

has to call appendInt method of a CollComm class

Reimplemented in DomainDecompMPIBase.

collCommAppendLongDouble()

void DomainDecompBase::collCommAppendLongDouble ( long double  longDoubleValue )

virtual

has to call appendLongDouble method of a CollComm class

Reimplemented in DomainDecompMPIBase.

collCommAppendUnsLong()

void DomainDecompBase::collCommAppendUnsLong ( unsigned long  unsLongValue )

virtual

has to call appendUnsLong method of a CollComm class

Reimplemented in DomainDecompMPIBase.

collCommBroadcast()

void DomainDecompBase::collCommBroadcast ( int  root = 0 )

virtual

has to call broadcast method of a CollComm class (none in sequential version)

Reimplemented in DomainDecompMPIBase.

collCommFinalize()

void DomainDecompBase::collCommFinalize ( )

virtual

has to call finalize method of a CollComm class

Reimplemented in DomainDecompMPIBase.

collCommGetDouble()

double DomainDecompBase::collCommGetDouble ( )

virtual

has to call getDouble method of a CollComm class

Reimplemented in DomainDecompMPIBase.

collCommGetFloat()

float DomainDecompBase::collCommGetFloat ( )

virtual

has to call getFloat method of a CollComm class

Reimplemented in DomainDecompMPIBase.

collCommGetInt()

int DomainDecompBase::collCommGetInt ( )

virtual

has to call getInt method of a CollComm class

Reimplemented in DomainDecompMPIBase.

collCommGetLongDouble()

long double DomainDecompBase::collCommGetLongDouble ( )

virtual

has to call getLongDouble method of a CollComm class

Reimplemented in DomainDecompMPIBase.

collCommGetUnsLong()

unsigned long DomainDecompBase::collCommGetUnsLong ( )

virtual

has to call getUnsLong method of a CollComm class

Reimplemented in DomainDecompMPIBase.

collCommInit()

void DomainDecompBase::collCommInit ( int  numValues, int  key = 0  )

virtual

has to call init method of a CollComm class

Reimplemented in DomainDecompMPIBase.

collCommScanSum()

void DomainDecompBase::collCommScanSum ( )

virtual

has to call scanSum method of a CollComm class (none in sequential version)

Reimplemented in DomainDecompMPIBase.

exchangeForces()

void DomainDecompBase::exchangeForces ( ParticleContainer *  moleculeContainer, Domain *  domain  )

virtual

Exchanges forces at the domain boundaries if it's required by the cell container.

Parameters

moleculeContainer	The particle container
domain

Reimplemented in DomainDecompMPIBase.

exchangeMolecules()

void DomainDecompBase::exchangeMolecules	(	ParticleContainer *	moleculeContainer,
		Domain *	domain
	)

exchange molecules between processes

molecules which aren't in the domain of their process any more are transferred to their neighbours. Additionally, the molecules for the halo-region are transferred. This implementation is the one used in sequential mode.

Parameters

moleculeContainer	needed to get those molecules which have to be exchanged
domain	is e.g. needed to get the size of the local domain

getBoundingBoxMax()

double DomainDecompBase::getBoundingBoxMax ( int  dimension, Domain *  domain  )

virtual

get the maximum of the bounding box of this process' domain in the given dimension (0,1,2)

Parameters

dimension	coordinate direction for which the maximum of the bounding box is returned
domain	here the bounding box is stored

Reimplemented in DomainDecomposition, GeneralDomainDecomposition, and KDDecomposition.

getBoundingBoxMin()

double DomainDecompBase::getBoundingBoxMin ( int  dimension, Domain *  domain  )

virtual

get the minimum of the bounding box of this process' domain in the given dimension (0,1,2)

Parameters

dimension	coordinate direction for which the minimum of the bounding box is returned
domain	here the bounding box is stored

Reimplemented in DomainDecomposition, GeneralDomainDecomposition, and KDDecomposition.

getBoundingBoxMinMax()

void DomainDecompBase::getBoundingBoxMinMax	(	Domain *	domain,
		double *	min,
		double *	max
	)

get the minimum and maximum coordinate of the bounding box of this process' domain

Parameters

domain
min	lower coordinate of the bounding box
max	upper coordinate of the bounding box

getIOCutoffRadius()

double DomainDecompBase::getIOCutoffRadius	(	int	dim,
		Domain *	domain,
		ParticleContainer *	moleculeContainer
	)

returns an cutoff radius for a dimension for a global linked cells datastructure

This method is e.g. used for the parallelCheckpointWriter, which builds a new global cell structure. This method returns a cutoff radius, so that each cell is fully contained in one process

Parameters

dim	the dimension, which will be returned
domain	e.g. needed to get the bounding boxes
moleculeContainer	e.g. needed for the cutoff radius

getName()

virtual std::string DomainDecompBase::getName ( )

inlineoverridevirtual

Implements MemoryProfilable.

getNeighbourRanksFullShell()

virtual std::vector<int> DomainDecompBase::getNeighbourRanksFullShell ( )

inlinevirtual

Reimplemented in DomainDecomposition.

getNonBlockingStageCount()

int DomainDecompBase::getNonBlockingStageCount ( )

virtual

Specifies the amount of non-blocking stages, when performing overlapping balanceAndExchange and computation. For a communication scheme, where only direct neighbours communicate, 3 stages of communication are necessary, since the particles have to be transmitted in the x-direction first, then in the y-direction, then in the z-direction.

Returns

The amount of communication stages. Returns -1 if it is not possible.

Reimplemented in DomainDecompMPIBase.

getNumProcs()

int DomainDecompBase::getNumProcs ( ) const

virtual

returns the number of processes

Returns

number of processes

getRank()

int DomainDecompBase::getRank ( ) const

virtual

returns the own rank

Returns

rank of the process

getTotalSize()

virtual size_t DomainDecompBase::getTotalSize ( )

inlineoverridevirtual

Implements MemoryProfilable.

handleDomainLeavingParticles()

void DomainDecompBase::handleDomainLeavingParticles ( unsigned  dim, ParticleContainer *  moleculeContainer  ) const

protected

Handles the sequential version of particles leaving the domain. Also used as a fall-back for the MPI variant if a process spans an entire dimension.

Parameters

dim
moleculeContainer

handleDomainLeavingParticlesDirect()

void DomainDecompBase::handleDomainLeavingParticlesDirect ( const HaloRegion &  haloRegion, ParticleContainer *  moleculeContainer, std::vector< Molecule > &  invalidParticles  ) const

protected

Handles the sequential version of particles leaving the domain in a direct communication pattern. Hereby all particles will be moved directly to the specific region without intermediary copies. x, y and z closely resemble the offset of the current region.

Parameters

x	-1, 0 or 1
y	-1, 0 or 1
z	-1, 0 or 1
moleculeContainer
invalidParticles	used if moleculeContainer->isInvalidParticleReturner() is true

handleForceExchange()

void DomainDecompBase::handleForceExchange ( unsigned  dim, ParticleContainer *  moleculeContainer  ) const

protected

Does the force exchange for each dimension. Will be called for dim=0, 1 and 2.

Parameters

dim	The dimension (0,1 or 2)
moleculeContainer	The particle container

handleForceExchangeDirect()

void DomainDecompBase::handleForceExchangeDirect ( const HaloRegion &  haloRegion, ParticleContainer *  moleculeContainer  ) const

protectedvirtual

Does the force exchange for each direction.

Parameters

haloRegion
moleculeContainer

Ndistribution()

unsigned DomainDecompBase::Ndistribution ( unsigned  localN, float *  minrnd, float *  maxrnd  )

virtual

returns total number of molecules

Reimplemented in DomainDecompMPIBase.

printDecomp()

void DomainDecompBase::printDecomp ( const std::string &  filename, Domain *  domain, ParticleContainer *  particleContainer  )

virtual

writes information about the current decomposition into the given file

Parameters

filename	name of the file into which the data will be written
domain	e.g. needed to get the bounding boxes
particleContainer	needed to print information about the parts of the decomposition

Reimplemented in DomainDecompMPIBase.

printSubInfo()

virtual void DomainDecompBase::printSubInfo ( int  offset )

inlineoverridevirtual

Implements MemoryProfilable.

procOwnsPos()

bool DomainDecompBase::procOwnsPos ( double  x, double  y, double  z, Domain *  domain  )

finalvirtual

find out whether the given position belongs to the domain of this process

This method is e.g. used by a particle generator which creates particles within the bounding box (cuboid) of a local domain, but only those particles which really belong to the domain (which might not be cuboid) are allowed to be really used.

Parameters

x	x-coordinate of the position to be checked
y	y-coordinate of the position to be checked
z	z-coordinate of the position to be checked
domain	might be needed to get the bounding box

queryBalanceAndExchangeNonBlocking()

bool DomainDecompBase::queryBalanceAndExchangeNonBlocking ( bool  forceRebalancing, ParticleContainer *  moleculeContainer, Domain *  domain, double  etime  )

virtual

Checks whether the balance and exchange step can be performed non-blocking.

A non-blocking behaviour is typically possible, as long as no rebalancing has to be done.

Parameters

forceRebalancing	if true, a rebalancing is forced; otherwise automatic balancing of Decomposition is applied
moleculeContainer	needed for calculating load and to get the particles
domain	is e.g. needed to get the size of the local domain

Reimplemented in DomainDecomposition, GeneralDomainDecomposition, and KDDecomposition.

readXML()

void DomainDecompBase::readXML ( XMLfileUnits &  xmlconfig )

virtual

Reimplemented in DomainDecompMPIBase, DomainDecomposition, GeneralDomainDecomposition, and KDDecomposition.

writeMoleculesToFile()

void DomainDecompBase::writeMoleculesToFile	(	const std::string &	filename,
		ParticleContainer *	moleculeContainer,
		bool	binary = false
	)		const

appends molecule data to the file. The format is the same as that of the input file If MPI is enabled and binary files are supposed to be written this function will call writeMoleculesToMPIFileBinary(). Otherwise, to ensure that not more than one process writes to the file at any time, there is a loop over all processes with a barrier in between.

Parameters

filename	name of the file into which the data will be written
moleculeContainer	all Particles from this container will be written to the file
binary	flag, that is true if the output shall be binary

writeMoleculesToMPIFileBinary()

void DomainDecompBase::writeMoleculesToMPIFileBinary	(	const std::string &	filename,
		ParticleContainer *	moleculeContainer
	)		const

appends molecule data to the file. The format is the same as that of the input file This version uses, MPI IO.

Parameters

filename	name of the file into which the data will be written
moleculeContainer	all Particles from this container will be written to the file

---

The documentation for this class was generated from the following files:

• src/parallel/DomainDecompBase.h
• src/parallel/DomainDecompBase.cpp
