#include <RegularPacking.h>

Inheritance diagram for algorithms::regularpacking::RegularPacking:

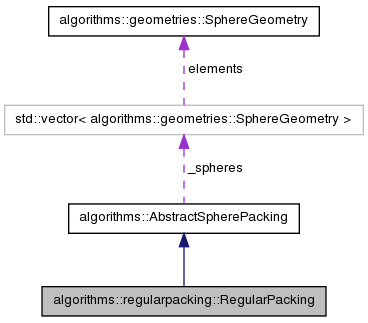

Collaboration diagram for algorithms::regularpacking::RegularPacking:

Public Member Functions
void	addSphere (double x, double y, double z, double r)
void	generate ()
double	getLength () const
double	getPositionX (unsigned int k) const
double	getPositionY (unsigned int k) const
double	getPositionZ (unsigned int k) const
double	getRadius () const
void	insertRowOfSpheres (double x, double y, double z, double r)
void	insertRowOfSpheres (double x, double y, double z, double r, double rmax)
void	insertRowOfSpheres (double x, double y, double z, double r, double rmax, BoundingBox &box)
void	insertSphereLayer (double x, double y, double z, double r)
void	insertSphereLayer (double x, double y, double z, double r, double rmax)
void	insertSphereLayer (double x, double y, double z, double r, double rmax, BoundingBox &box)
void	mixGenerate (double radius2, double density, double density2)
void	mixGenerate (std::vector< std::pair< double, double > > &configuration)
void	mixGenerate (BoundingBox &box, std::vector< SphereLayer > &configuration)
	RegularPacking (double length, double radius, double distance)
	RegularPacking (double length, double radius)
	RegularPacking (BoundingBox &box, std::vector< SphereLayer > &configuration)
	RegularPacking (double length, double radius, double radius2, double density, double density2, double distance)
	RegularPacking (double length, std::vector< std::pair< double, double > > &configuration)
	RegularPacking ()
virtual	~RegularPacking ()
Private Attributes
double	_a
double	_m

Detailed Description

Class RegularPacking implements the method to generate spheres with Hexagonal close-packed

Constructor & Destructor Documentation

algorithms::regularpacking::RegularPacking::RegularPacking	(	double	length,
		double	radius,
		double	distance
	)

Constructor

Parameters:

length	the length of one edge in domain,domain is a cubic
radius	the radius of sphere
distance	the minimal distance between sphere and edge of domain due to the resolution

algorithms::regularpacking::RegularPacking::RegularPacking	(	double	length,
		double	radius
	)

Constructor without distance

Parameters:

length	the length of one edge in domain,domain is a cubic
radius	the radius of sphere

algorithms::regularpacking::RegularPacking::RegularPacking	(	BoundingBox &	box,
		std::vector< SphereLayer > &	configuration
	)

algorithms::regularpacking::RegularPacking::RegularPacking	(	double	length,
		double	radius,
		double	radius2,
		double	density,
		double	density2,
		double	distance
	)

algorithms::regularpacking::RegularPacking::RegularPacking	(	double	length,
		std::vector< std::pair< double, double > > &	configuration
	)

algorithms::regularpacking::RegularPacking::RegularPacking ( )

Constructor

algorithms::regularpacking::RegularPacking::~RegularPacking ( ) [virtual]

Destructor

Member Function Documentation

void algorithms::regularpacking::RegularPacking::addSphere	(	double	x,
		double	y,
		double	z,
		double	r
	)

Insert one sphere into the domain

Parameters:

x	the position of the new sphere in x axle
y	the position of the new sphere in y axle
z	the position of the new sphere in z axle

void algorithms::regularpacking::RegularPacking::generate ( ) [virtual]

Filled spheres with whole domain by A-B-A-B-algorithem

1.Determine the center of first sphere inserted for instance like (2r, r, r).

2.The A Plane: row by row, the centers of first row will look like (2r, r, r), (4r, r, r), (6r, r, r), (8r, r, r),

3.The next row will be (r, r + ��3r, r), (3r, r + ��3r, r), (5r, r + ��3r, r), (7r, r + ��3r, r),

4.The B Plane in the same way, which is also inserted row by row: (r, ��3/3r, r+(2��6)/3 r), (3r, ��3/3r, r+(2��6)/3 r), (5r, ��3/3r, r+(2��6)/3 r), (7r, ��3/3r, r+(2��6)/3 r)

5.The next row of B Plane will be (2r, (2��3)/3r, r+(2��6)/3 r), (4r, (2��3)/3r, r+(2��6)/3 r), (6r, (2��3)/3r, r+(2��6)/3 r), (8r, (2��3)/3r, r+(2��6)/3 r),

6.Filling the box with the A-B-A-B-A-

Implements algorithms::AbstractSpherePacking.

double algorithms::regularpacking::RegularPacking::getLength ( ) const

Gets the length of domain

Returns:: the length of domain

double algorithms::regularpacking::RegularPacking::getPositionX ( unsigned int k ) const

Gets the position x axle for certain sphere

Parameters:

k	the number of certain sphere

Returns:: the position of x axle

double algorithms::regularpacking::RegularPacking::getPositionY ( unsigned int k ) const

Gets the position y axle for certain sphere

Parameters:

k	the number of certain sphere

Returns:: the position of y axle

double algorithms::regularpacking::RegularPacking::getPositionZ ( unsigned int k ) const

Gets the position z axle for certain sphere

Parameters:

k	the number of certain sphere

Returns:: the position of z axle

double algorithms::regularpacking::RegularPacking::getRadius ( ) const

Gets the radius of sphere

Returns:: the radius of sphere

Reimplemented from algorithms::AbstractSpherePacking.

void algorithms::regularpacking::RegularPacking::insertRowOfSpheres	(	double	x,
		double	y,
		double	z,
		double	r
	)

Insert one row of spheres into the domain

Parameters:

x	the position of the initial sphere in x axle
y	the position of the initial sphere in y axle
z	the position of the initial sphere in z axle

void algorithms::regularpacking::RegularPacking::insertRowOfSpheres	(	double	x,
		double	y,
		double	z,
		double	r,
		double	rmax
	)

void algorithms::regularpacking::RegularPacking::insertRowOfSpheres	(	double	x,
		double	y,
		double	z,
		double	r,
		double	rmax,
		BoundingBox &	box
	)

void algorithms::regularpacking::RegularPacking::insertSphereLayer	(	double	x,
		double	y,
		double	z,
		double	r
	)

Insert one layer of spheres into the domain

Parameters:

x	the position of the initial sphere in x axle
y	the position of the initial sphere in y axle
z	the position of the initial sphere in z axle

void algorithms::regularpacking::RegularPacking::insertSphereLayer	(	double	x,
		double	y,
		double	z,
		double	r,
		double	rmax
	)

void algorithms::regularpacking::RegularPacking::insertSphereLayer	(	double	x,
		double	y,
		double	z,
		double	r,
		double	rmax,
		BoundingBox &	box
	)

void algorithms::regularpacking::RegularPacking::mixGenerate	(	double	radius2,
		double	density,
		double	density2
	)

void algorithms::regularpacking::RegularPacking::mixGenerate ( std::vector< std::pair< double, double > > & configuration )

void algorithms::regularpacking::RegularPacking::mixGenerate	(	BoundingBox &	box,
		std::vector< SphereLayer > &	configuration
	)

Member Data Documentation

double algorithms::regularpacking::RegularPacking::_a [private]

double algorithms::regularpacking::RegularPacking::_m [private]

The documentation for this class was generated from the following files:

algorithms/regularpacking/RegularPacking.h
algorithms/regularpacking/RegularPacking.cpp
