CollectiveCommBaseInterface Class Reference

This class is provides an interface for the base class of the collective communication. More...

#include <CollectiveCommBaseInterface.h>

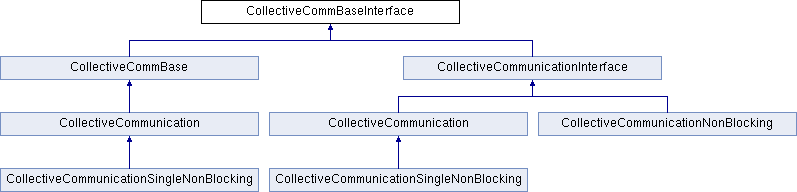

Inheritance diagram for CollectiveCommBaseInterface:

Public Member Functions
virtual	~CollectiveCommBaseInterface ()
	virtual destructor
virtual void	appendInt (int intValue)=0
virtual void	appendUnsLong (unsigned long unsLongValue)=0
virtual void	appendFloat (float floatValue)=0
virtual void	appendDouble (double doubleValue)=0
virtual void	appendLongDouble (long double longDoubleValue)=0
virtual void	broadcast (int=0)=0
virtual void	allreduceSum ()=0
	Performs an all-reduce (sum) More...
virtual void	allreduceCustom (ReduceType type)=0
virtual void	scanSum ()=0
	Performs a scan (sum) More...
virtual int	getInt ()=0
virtual unsigned long	getUnsLong ()=0
virtual float	getFloat ()=0
virtual double	getDouble ()=0
virtual long double	getLongDouble ()=0
virtual void	finalize ()=0
	delete memory and MPI_Type More...
virtual size_t	getTotalSize ()=0

Detailed Description

This class is provides an interface for the base class of the collective communication.

Refactored to increase code-reuse

Author

Steffen Seckler

To fully understand the purpose of this class, read the documentation of the class CollectiveCommunication. The application developer should not have to care whether the program will be executed in parallel or sequentially. The only thing that the application developer should know that there might be several processes and at some point in the simulation those have to do a collective communication to broadcast or reduce values. Those values are given to the domain decomposition method, the communication command is executed by the domain decomp and the values can be read again. This class just has to ensure that this also works if there is no real domain decomposition but the class DomainDecompBase is used.

Member Function Documentation

allreduceCustom()

virtual void CollectiveCommBaseInterface::allreduceCustom ( ReduceType  type )

pure virtual

Performs an allreduce operation with a custom reduce type.

Parameters

type	the type of the operation

Implemented in CollectiveCommBase, CollectiveCommunication, and CollectiveCommunicationNonBlocking.

allreduceSum()

virtual void CollectiveCommBaseInterface::allreduceSum ( )

pure virtual

Performs an all-reduce (sum)

Implemented in CollectiveCommBase, CollectiveCommunication, and CollectiveCommunicationNonBlocking.

appendDouble()

virtual void CollectiveCommBaseInterface::appendDouble ( double  doubleValue )

pure virtual

Append a double value to the list of values to be stored

Parameters

doubleValue

the value

Implemented in CollectiveCommBase, CollectiveCommunication, and CollectiveCommunicationNonBlocking.

appendFloat()

virtual void CollectiveCommBaseInterface::appendFloat ( float  floatValue )

pure virtual

Append a float value to the list of values to be stored

Parameters

floatValue

the value

Implemented in CollectiveCommBase, CollectiveCommunication, and CollectiveCommunicationNonBlocking.

appendInt()

virtual void CollectiveCommBaseInterface::appendInt ( int  intValue )

pure virtual

Append an int value to the list of values to be stored

Parameters

intValue

the value

Implemented in CollectiveCommBase, CollectiveCommunication, and CollectiveCommunicationNonBlocking.

appendLongDouble()

virtual void CollectiveCommBaseInterface::appendLongDouble ( long double  longDoubleValue )

pure virtual

Append a long double value to the list of values to be stored

Parameters

longDoubleValue

the value

Implemented in CollectiveCommBase, CollectiveCommunication, and CollectiveCommunicationNonBlocking.

appendUnsLong()

virtual void CollectiveCommBaseInterface::appendUnsLong ( unsigned long  unsLongValue )

pure virtual

Append a unsigned long value to the list of values to be stored

Parameters

unsLongValue

the value

Implemented in CollectiveCommBase, CollectiveCommunication, and CollectiveCommunicationNonBlocking.

broadcast()

virtual void CollectiveCommBaseInterface::broadcast ( int  = 0 )

pure virtual

Performs a broadcast of the values to all processes in the communicator

Parameters

root	of the broadcast

Implemented in CollectiveCommunication, CollectiveCommunicationNonBlocking, and CollectiveCommBase.

finalize()

virtual void CollectiveCommBaseInterface::finalize ( )

pure virtual

delete memory and MPI_Type

Returns

the value

Implemented in CollectiveCommBase, CollectiveCommunication, CollectiveCommunicationNonBlocking, and CollectiveCommunicationSingleNonBlocking.

getDouble()

virtual double CollectiveCommBaseInterface::getDouble ( )

pure virtual

Get the next value from the list, which must be double

no check is performed that the type is correct, so we rely on the sanity of the programmer to ensure FIFO ordering w.r.t. append-get order

Returns

the value

Implemented in CollectiveCommBase, and CollectiveCommunicationNonBlocking.

getFloat()

virtual float CollectiveCommBaseInterface::getFloat ( )

pure virtual

Get the next value from the list, which must be float

no check is performed that the type is correct, so we rely on the sanity of the programmer to ensure FIFO ordering w.r.t. append-get order

Returns

the value

Implemented in CollectiveCommBase, and CollectiveCommunicationNonBlocking.

getInt()

virtual int CollectiveCommBaseInterface::getInt ( )

pure virtual

Get the next value from the list, which must be int

no check is performed that the type is correct, so we rely on the sanity of the programmer to ensure FIFO ordering w.r.t. append-get order3

Returns

the value

Implemented in CollectiveCommBase, and CollectiveCommunicationNonBlocking.

getLongDouble()

virtual long double CollectiveCommBaseInterface::getLongDouble ( )

pure virtual

Get the next value from the list, which must be long double

no check is performed that the type is correct, so we rely on the sanity of the programmer to ensure FIFO ordering w.r.t. append-get order

Returns

the value

Implemented in CollectiveCommBase, and CollectiveCommunicationNonBlocking.

getTotalSize()

virtual size_t CollectiveCommBaseInterface::getTotalSize ( )

pure virtual

get the size of the entire object allocated memory

Returns

size of the dynamically allocated memory in bytes

Implemented in CollectiveCommBase, CollectiveCommunication, and CollectiveCommunicationNonBlocking.

getUnsLong()

virtual unsigned long CollectiveCommBaseInterface::getUnsLong ( )

pure virtual

Get the next value from the list, which must be unsigned long

no check is performed that the type is correct, so we rely on the sanity of the programmer to ensure FIFO ordering w.r.t. append-get order

Returns

the value

Implemented in CollectiveCommBase, and CollectiveCommunicationNonBlocking.

scanSum()

virtual void CollectiveCommBaseInterface::scanSum ( )

pure virtual

Performs a scan (sum)

Implemented in CollectiveCommBase, CollectiveCommunication, and CollectiveCommunicationNonBlocking.

---

The documentation for this class was generated from the following file:

• src/parallel/CollectiveCommBaseInterface.h
