CollectiveCommunicationInterface Class Reference

This class provides an interface for the collective communication classes. More...

#include <CollectiveCommunicationInterface.h>

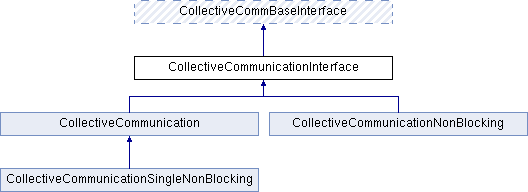

Inheritance diagram for CollectiveCommunicationInterface:

Public Member Functions
	~CollectiveCommunicationInterface () override=default
	virtual destructor
virtual void	init (MPI_Comm communicator, int numValues, int key=0)=0
	allocate memory for the values to be sent, initialize counters for specific More...
virtual void	allreduceSumAllowPrevious ()=0
virtual MPI_Comm	getTopology ()=0
Public Member Functions inherited from CollectiveCommBaseInterface
virtual	~CollectiveCommBaseInterface ()
	virtual destructor
virtual void	appendInt (int intValue)=0
virtual void	appendUnsLong (unsigned long unsLongValue)=0
virtual void	appendFloat (float floatValue)=0
virtual void	appendDouble (double doubleValue)=0
virtual void	appendLongDouble (long double longDoubleValue)=0
virtual void	broadcast (int=0)=0
virtual void	allreduceSum ()=0
	Performs an all-reduce (sum) More...
virtual void	allreduceCustom (ReduceType type)=0
virtual void	scanSum ()=0
	Performs a scan (sum) More...
virtual int	getInt ()=0
virtual unsigned long	getUnsLong ()=0
virtual float	getFloat ()=0
virtual double	getDouble ()=0
virtual long double	getLongDouble ()=0
virtual void	finalize ()=0
	delete memory and MPI_Type More...
virtual size_t	getTotalSize ()=0

Detailed Description

This class provides an interface for the collective communication classes.

It provides all methods, that are NOT YET provided by CollectiveCommBaseInterface

Author

Steffen Seckler

Member Function Documentation

allreduceSumAllowPrevious()

virtual void CollectiveCommunicationInterface::allreduceSumAllowPrevious ( )

pure virtual

Performs an all-reduce (sum), however values of previous iterations are permitted. By allowing values from previous iterations, overlapping communication is possible. One possible use case for this function is the reduction of slowly changing variables, e.g. the temperature.

Implemented in CollectiveCommunication, CollectiveCommunicationNonBlocking, and CollectiveCommunicationSingleNonBlocking.

getTopology()

virtual MPI_Comm CollectiveCommunicationInterface::getTopology ( )

pure virtual

Get the MPI communicator

Returns

MPI communicator

Implemented in CollectiveCommunication, and CollectiveCommunicationNonBlocking.

init()

virtual void CollectiveCommunicationInterface::init ( MPI_Comm  communicator, int  numValues, int  key = 0  )

pure virtual

allocate memory for the values to be sent, initialize counters for specific

Parameters

key	The key of the collective communication, this key will be used
communicator	MPI communicator for the
numValues	number of values that shall be communicated

Implemented in CollectiveCommunication, CollectiveCommunicationNonBlocking, and CollectiveCommunicationSingleNonBlocking.

---

The documentation for this class was generated from the following file:

• src/parallel/CollectiveCommunicationInterface.h
