FFTAcceleration_2wayM2L Class Reference

#include <FFTAcceleration_2wayM2L.h>

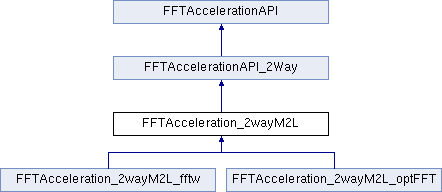

Inheritance diagram for FFTAcceleration_2wayM2L:

Public Member Functions
void	FFT_initialize_Target (FFTAccelerableExpansion &Expansion)
void	FFT_M2L (FFTAccelerableExpansion &Source, FFTAccelerableExpansion &Target, FFTDataContainer *TransferFunction)
void	FFT_M2L_vec (FFTAccelerableExpansion &Source, FFTAccelerableExpansion &Target, FFTDataContainer *TransferFunction)
void	FFT_M2L_2way (FFTAccelerableExpansion &Source1, FFTAccelerableExpansion &Source2, FFTAccelerableExpansion &Target1, FFTAccelerableExpansion &Target2, FFTDataContainer *TransferFunction)
	M2L using 2way scheme (see doc/2wayM2L) More...
void	FFT_M2L_2way_vec (FFTAccelerableExpansion &Source1, FFTAccelerableExpansion &Source2, FFTAccelerableExpansion &Target1, FFTAccelerableExpansion &Target2, FFTDataContainer *TransferFunction)
Public Member Functions inherited from FFTAccelerationAPI_2Way
virtual	~FFTAccelerationAPI_2Way ()
	destructor, child class will be upcasted, virtual destructor required to call the right child class destructor
Public Member Functions inherited from FFTAccelerationAPI
virtual	~FFTAccelerationAPI ()
	destructor, child class will be upcasted, virtual destructor required to call the right child class destructor
virtual void	FFT_initialize_Source (FFTAccelerableExpansion &Expansion, double radius)=0
virtual void	FFT_initialize_TransferFunction (FFTAccelerableExpansion &Expansion)=0
virtual void	FFT_finalize_Target (FFTAccelerableExpansion &Expansion, double radius)=0

Protected Member Functions
FFTDataContainer_arrays *	getFFTData (FFTAccelerableExpansion &Expansion)

Protected Attributes
int	_nbZeroes
int	_totalSize
Protected Attributes inherited from FFTAccelerationAPI
int	_p
int	_fft_nx
	order of the expansions (start at 0 so usually order+1)
int	_fft_ny
	number of line of the FFT matrices (or similar)

Detailed Description

Abstract class with common code for basic fft and fftw implementation

Use FFTDataContainer_arrays as Data container (2 arrays)

Don't define FFT_M2L and FFT_M2L_vec, but define FFT_M2L_2way the code using the acceleration should downcast its FFTAcceleration to the FFTAcceleration_2Way class and use FFT_M2L_2way instead of FFT_M2L

Member Function Documentation

FFT_initialize_Target()

void FFTAcceleration_2wayM2L::FFT_initialize_Target ( FFTAccelerableExpansion &  Expansion )

virtual

Initialize a Target expansion's FFTDatacontainer (schould be to a full 0 FFTDatacontainer)

Parameters

FFTAccelerableExpansion

& Expansion

Implements FFTAccelerationAPI.

FFT_M2L()

void FFTAcceleration_2wayM2L::FFT_M2L ( FFTAccelerableExpansion &  Source, FFTAccelerableExpansion &  Target, FFTDataContainer *  TransferFunction  )

inlinevirtual

M2L operator, performs the M2L in fourier space, usually an entrywise product (or more complexe scheme if needed, see blocks implementations)

All parameters needs to be initialized using the previous methods The TransferFunction should come from a TransferFunctionManager

Parameters

FFTAccelerableExpansion	& Source
FFTAccelerableExpansion	& Target
FFTDataContainer*	TransferFunction

Implements FFTAccelerationAPI.

FFT_M2L_2way()

void FFTAcceleration_2wayM2L::FFT_M2L_2way ( FFTAccelerableExpansion &  Source1, FFTAccelerableExpansion &  Source2, FFTAccelerableExpansion &  Target1, FFTAccelerableExpansion &  Target2, FFTDataContainer *  TransferFunction  )

virtual

M2L using 2way scheme (see doc/2wayM2L)

Implements FFTAccelerationAPI_2Way.

FFT_M2L_2way_vec()

void FFTAcceleration_2wayM2L::FFT_M2L_2way_vec ( FFTAccelerableExpansion &  Source1, FFTAccelerableExpansion &  Source2, FFTAccelerableExpansion &  Target1, FFTAccelerableExpansion &  Target2, FFTDataContainer *  TransferFunction  )

virtual

Implements FFTAccelerationAPI_2Way.

FFT_M2L_vec()

void FFTAcceleration_2wayM2L::FFT_M2L_vec ( FFTAccelerableExpansion &  Source, FFTAccelerableExpansion &  Target, FFTDataContainer *  TransferFunction  )

inlinevirtual

M2L operator, performs the M2L in fourier space, usually an entrywise product (or more complexe scheme if needed, see blocks implementations)

Uses vectorization of the loops

All parameters needs to be initialized using the previous methods The TransferFunction should come from a TransferFunctionManager

Parameters

FFTAccelerableExpansion	& Source
FFTAccelerableExpansion	& Target
FFTDataContainer*	TransferFunction

Implements FFTAccelerationAPI.

---

The documentation for this class was generated from the following files:

• src/bhfmm/fft/FFTAccelerationImplementations/FFTAcceleration_2wayM2L.h
• src/bhfmm/fft/FFTAccelerationImplementations/FFTAcceleration_2wayM2L.cpp
