FFTAccelerationAPI Class Reference

#include <FFTAccelerationAPI.h>

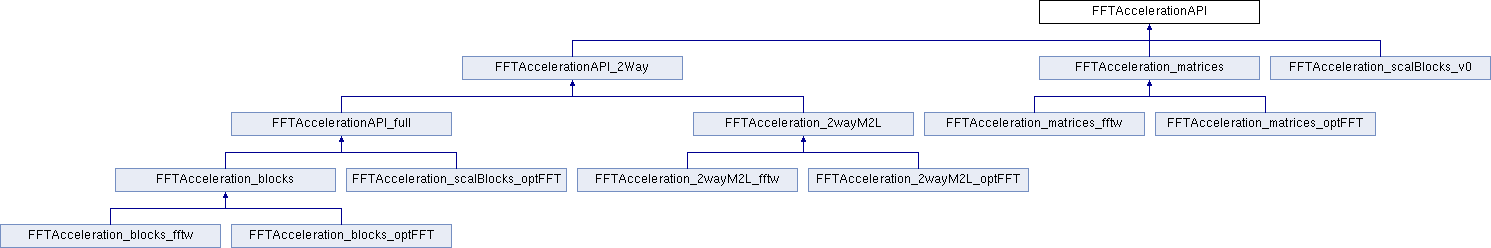

Inheritance diagram for FFTAccelerationAPI:

Public Member Functions
virtual	~FFTAccelerationAPI ()
	destructor, child class will be upcasted, virtual destructor required to call the right child class destructor
virtual void	FFT_initialize_Source (FFTAccelerableExpansion &Expansion, double radius)=0
virtual void	FFT_initialize_Target (FFTAccelerableExpansion &Expansion)=0
virtual void	FFT_initialize_TransferFunction (FFTAccelerableExpansion &Expansion)=0
virtual void	FFT_M2L (FFTAccelerableExpansion &Source, FFTAccelerableExpansion &Target, FFTDataContainer *TransferFunction)=0
virtual void	FFT_M2L_vec (FFTAccelerableExpansion &Source, FFTAccelerableExpansion &Target, FFTDataContainer *TransferFunction)=0
virtual void	FFT_finalize_Target (FFTAccelerableExpansion &Expansion, double radius)=0

Protected Attributes
int	_p
int	_fft_nx
	order of the expansions (start at 0 so usually order+1)
int	_fft_ny
	number of line of the FFT matrices (or similar)

Detailed Description

Abstract class defining the interface of a class handling the M2L's FFT acceleration

Various implementations will offer various schemes and can be choosed at runtime using a factory and strategy pattern (see FFTSetting and FFTFactory)

Member Function Documentation

FFT_finalize_Target()

virtual void FFTAccelerationAPI::FFT_finalize_Target ( FFTAccelerableExpansion &  Expansion, double  radius  )

pure virtual

Finalize a Target expansion by adding the result of the M2L stored in Fourier space to the expansion values.

Include the rescaling using the radius parameter, should be the same as the one used by FFT_initialize_Source

Parameters

FFTAccelerableExpansion	& Expansion
double	radius

Implemented in FFTAcceleration_blocks_fftw, FFTAcceleration_blocks_optFFT, FFTAcceleration_scalBlocks_optFFT, FFTAcceleration_scalBlocks_v0, FFTAcceleration_2wayM2L_fftw, FFTAcceleration_2wayM2L_optFFT, FFTAcceleration_matrices_fftw, and FFTAcceleration_matrices_optFFT.

FFT_initialize_Source()

virtual void FFTAccelerationAPI::FFT_initialize_Source ( FFTAccelerableExpansion &  Expansion, double  radius  )

pure virtual

Initialize a source expansion's FFTDatacontainer, including rescaling using the radius parameter (see doc/Rescalling)

Parameters

FFTAccelerableExpansion	& Expansion
double	radius

Implemented in FFTAcceleration_blocks_fftw, FFTAcceleration_blocks_optFFT, FFTAcceleration_scalBlocks_optFFT, FFTAcceleration_scalBlocks_v0, FFTAcceleration_2wayM2L_fftw, FFTAcceleration_2wayM2L_optFFT, FFTAcceleration_matrices_fftw, and FFTAcceleration_matrices_optFFT.

FFT_initialize_Target()

virtual void FFTAccelerationAPI::FFT_initialize_Target ( FFTAccelerableExpansion &  Expansion )

pure virtual

Initialize a Target expansion's FFTDatacontainer (schould be to a full 0 FFTDatacontainer)

Parameters

FFTAccelerableExpansion

& Expansion

Implemented in FFTAcceleration_blocks, FFTAcceleration_scalBlocks_optFFT, FFTAcceleration_scalBlocks_v0, FFTAcceleration_2wayM2L, and FFTAcceleration_matrices.

FFT_initialize_TransferFunction()

virtual void FFTAccelerationAPI::FFT_initialize_TransferFunction ( FFTAccelerableExpansion &  Expansion )

pure virtual

Initialize a source expansion's FFTDatacontainer, all subsequent transformations (flip of the matrix or rescaling of scaling blocks for example) should be done here.

Parameters

FFTAccelerableExpansion

& Expansion

Implemented in FFTAcceleration_blocks_fftw, FFTAcceleration_blocks_optFFT, FFTAcceleration_scalBlocks_optFFT, FFTAcceleration_scalBlocks_v0, FFTAcceleration_2wayM2L_fftw, FFTAcceleration_2wayM2L_optFFT, FFTAcceleration_matrices_fftw, and FFTAcceleration_matrices_optFFT.

FFT_M2L()

virtual void FFTAccelerationAPI::FFT_M2L ( FFTAccelerableExpansion &  Source, FFTAccelerableExpansion &  Target, FFTDataContainer *  TransferFunction  )

pure virtual

M2L operator, performs the M2L in fourier space, usually an entrywise product (or more complexe scheme if needed, see blocks implementations)

All parameters needs to be initialized using the previous methods The TransferFunction should come from a TransferFunctionManager

Parameters

FFTAccelerableExpansion	& Source
FFTAccelerableExpansion	& Target
FFTDataContainer*	TransferFunction

Implemented in FFTAcceleration_blocks, FFTAcceleration_scalBlocks_optFFT, FFTAcceleration_scalBlocks_v0, FFTAcceleration_2wayM2L, and FFTAcceleration_matrices.

FFT_M2L_vec()

virtual void FFTAccelerationAPI::FFT_M2L_vec ( FFTAccelerableExpansion &  Source, FFTAccelerableExpansion &  Target, FFTDataContainer *  TransferFunction  )

pure virtual

M2L operator, performs the M2L in fourier space, usually an entrywise product (or more complexe scheme if needed, see blocks implementations)

Uses vectorization of the loops

All parameters needs to be initialized using the previous methods The TransferFunction should come from a TransferFunctionManager

Parameters

FFTAccelerableExpansion	& Source
FFTAccelerableExpansion	& Target
FFTDataContainer*	TransferFunction

Implemented in FFTAcceleration_blocks, FFTAcceleration_scalBlocks_optFFT, FFTAcceleration_scalBlocks_v0, FFTAcceleration_2wayM2L, and FFTAcceleration_matrices.

---

The documentation for this class was generated from the following file:

• src/bhfmm/fft/FFTAccelerationAPI.h
