FFTAcceleration_blocks Class Reference

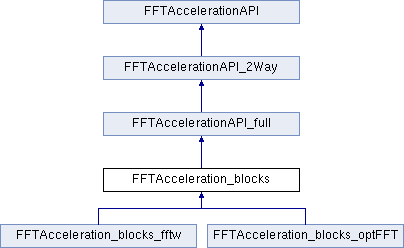

Inheritance diagram for FFTAcceleration_blocks:

Public Member Functions
void	FFT_initialize_Target (FFTAccelerableExpansion &Expansion)
void	FFT_M2L (FFTAccelerableExpansion &Source, FFTAccelerableExpansion &Target, FFTDataContainer *TransferFunction)
void	FFT_M2L_vec (FFTAccelerableExpansion &Source, FFTAccelerableExpansion &Target, FFTDataContainer *TransferFunction)
void	FFT_M2L_OrderReduction (FFTAccelerableExpansion &Source, FFTAccelerableExpansion &Target, FFTDataContainer *TransferFunction, int order)
	M2L using Order Reduction. More...
void	FFT_M2L_OrderReduction_vec (FFTAccelerableExpansion &Source, FFTAccelerableExpansion &Target, FFTDataContainer *TransferFunction, int order)
void	FFT_M2L_2way (FFTAccelerableExpansion &Source1, FFTAccelerableExpansion &Source2, FFTAccelerableExpansion &Target1, FFTAccelerableExpansion &Target2, FFTDataContainer *TransferFunction)
	M2L using 2way scheme (see doc/2wayM2L) More...
void	FFT_M2L_2way_vec (FFTAccelerableExpansion &Source1, FFTAccelerableExpansion &Source2, FFTAccelerableExpansion &Target1, FFTAccelerableExpansion &Target2, FFTDataContainer *TransferFunction)
void	FFT_M2L_2way_ORed (FFTAccelerableExpansion &Source1, FFTAccelerableExpansion &Source2, FFTAccelerableExpansion &Target1, FFTAccelerableExpansion &Target2, FFTDataContainer *TransferFunction, int order)
	M2L using both Order Reduction and 2way. More...
void	FFT_M2L_2way_ORed_vec (FFTAccelerableExpansion &Source1, FFTAccelerableExpansion &Source2, FFTAccelerableExpansion &Target1, FFTAccelerableExpansion &Target2, FFTDataContainer *TransferFunction, int order)
Public Member Functions inherited from FFTAccelerationAPI_full
virtual	~FFTAccelerationAPI_full ()
	destructor, child class will be upcasted, virtual destructor required to call the right child class destructor
Public Member Functions inherited from FFTAccelerationAPI_2Way
virtual	~FFTAccelerationAPI_2Way ()
	destructor, child class will be upcasted, virtual destructor required to call the right child class destructor
Public Member Functions inherited from FFTAccelerationAPI
virtual	~FFTAccelerationAPI ()
	destructor, child class will be upcasted, virtual destructor required to call the right child class destructor
virtual void	FFT_initialize_Source (FFTAccelerableExpansion &Expansion, double radius)=0
virtual void	FFT_initialize_TransferFunction (FFTAccelerableExpansion &Expansion)=0
virtual void	FFT_finalize_Target (FFTAccelerableExpansion &Expansion, double radius)=0

Protected Member Functions
FFTDataContainer_blocks *	getFFTData (FFTAccelerableExpansion &Expansion)
template<bool Vect, bool OrderRed>
void	FFT_M2L_template (FFTAccelerableExpansion &Source, FFTAccelerableExpansion &Target, FFTDataContainer *TransferFunction, int order)
template<bool Vect, bool OrderRed>
void	FFT_M2L_2way_template (FFTAccelerableExpansion &Source1, FFTAccelerableExpansion &Source2, FFTAccelerableExpansion &Target1, FFTAccelerableExpansion &Target2, FFTDataContainer *TransferFunction, int order)

Protected Attributes
int	_nbBlocks
int	_nbLinePerBlock
Protected Attributes inherited from FFTAccelerationAPI
int	_p
int	_fft_nx
	order of the expansions (start at 0 so usually order+1)
int	_fft_ny
	number of line of the FFT matrices (or similar)

Member Function Documentation

FFT_initialize_Target()

void FFTAcceleration_blocks::FFT_initialize_Target ( FFTAccelerableExpansion &  Expansion )

virtual

Initialize a Target expansion's FFTDatacontainer (schould be to a full 0 FFTDatacontainer)

Parameters

FFTAccelerableExpansion

& Expansion

Implements FFTAccelerationAPI.

FFT_M2L()

void FFTAcceleration_blocks::FFT_M2L ( FFTAccelerableExpansion &  Source, FFTAccelerableExpansion &  Target, FFTDataContainer *  TransferFunction  )

virtual

M2L operator, performs the M2L in fourier space, usually an entrywise product (or more complexe scheme if needed, see blocks implementations)

All parameters needs to be initialized using the previous methods The TransferFunction should come from a TransferFunctionManager

Parameters

FFTAccelerableExpansion	& Source
FFTAccelerableExpansion	& Target
FFTDataContainer*	TransferFunction

Implements FFTAccelerationAPI.

FFT_M2L_2way()

void FFTAcceleration_blocks::FFT_M2L_2way ( FFTAccelerableExpansion &  Source1, FFTAccelerableExpansion &  Source2, FFTAccelerableExpansion &  Target1, FFTAccelerableExpansion &  Target2, FFTDataContainer *  TransferFunction  )

virtual

M2L using 2way scheme (see doc/2wayM2L)

Implements FFTAccelerationAPI_2Way.

FFT_M2L_2way_ORed()

void FFTAcceleration_blocks::FFT_M2L_2way_ORed ( FFTAccelerableExpansion &  Source1, FFTAccelerableExpansion &  Source2, FFTAccelerableExpansion &  Target1, FFTAccelerableExpansion &  Target2, FFTDataContainer *  TransferFunction, int  order  )

virtual

M2L using both Order Reduction and 2way.

Implements FFTAccelerationAPI_full.

FFT_M2L_2way_ORed_vec()

void FFTAcceleration_blocks::FFT_M2L_2way_ORed_vec ( FFTAccelerableExpansion &  Source1, FFTAccelerableExpansion &  Source2, FFTAccelerableExpansion &  Target1, FFTAccelerableExpansion &  Target2, FFTDataContainer *  TransferFunction, int  order  )

virtual

Implements FFTAccelerationAPI_full.

FFT_M2L_2way_vec()

void FFTAcceleration_blocks::FFT_M2L_2way_vec ( FFTAccelerableExpansion &  Source1, FFTAccelerableExpansion &  Source2, FFTAccelerableExpansion &  Target1, FFTAccelerableExpansion &  Target2, FFTDataContainer *  TransferFunction  )

virtual

Implements FFTAccelerationAPI_2Way.

FFT_M2L_OrderReduction()

void FFTAcceleration_blocks::FFT_M2L_OrderReduction ( FFTAccelerableExpansion &  Source, FFTAccelerableExpansion &  Target, FFTDataContainer *  TransferFunction, int  order  )

virtual

M2L using Order Reduction.

Implements FFTAccelerationAPI_full.

FFT_M2L_OrderReduction_vec()

void FFTAcceleration_blocks::FFT_M2L_OrderReduction_vec ( FFTAccelerableExpansion &  Source, FFTAccelerableExpansion &  Target, FFTDataContainer *  TransferFunction, int  order  )

virtual

Implements FFTAccelerationAPI_full.

FFT_M2L_vec()

void FFTAcceleration_blocks::FFT_M2L_vec ( FFTAccelerableExpansion &  Source, FFTAccelerableExpansion &  Target, FFTDataContainer *  TransferFunction  )

virtual

M2L operator, performs the M2L in fourier space, usually an entrywise product (or more complexe scheme if needed, see blocks implementations)

Uses vectorization of the loops

All parameters needs to be initialized using the previous methods The TransferFunction should come from a TransferFunctionManager

Parameters

FFTAccelerableExpansion	& Source
FFTAccelerableExpansion	& Target
FFTDataContainer*	TransferFunction

Implements FFTAccelerationAPI.

---

The documentation for this class was generated from the following files:

• src/bhfmm/fft/FFTAccelerationImplementations/block/FFTAcceleration_blocks.h
• src/bhfmm/fft/FFTAccelerationImplementations/block/FFTAcceleration_blocks.cpp
